Folder structure

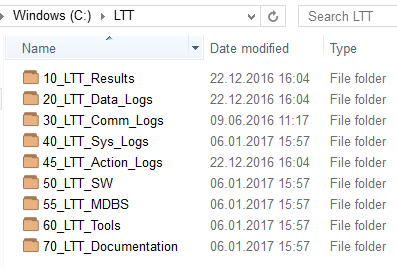

After installation you will find a certain folder structure below your root installation folder.
| Folder | Content |
|---|---|
| 10_LTT_Results | Location of the history files (more info). |
| 20_LTT_Data_Logs | Location of various measurement data files. |
| 30_LTT_Comm_Logs | Location of various DUT communication logs (currently not used). |
| 40_LTT_Sys_Logs | System log files. |
| 50_LTT_SW | The LTT GUI software + TestStand root + Configuration files. |
| 55_LTT_MDBS | The measurement database system (more info). |
| 60_LTT_Action_Logs | See chapter about Action Logs. |
| 66_LTT_Tools | Some tools. |
| 77_LTT_Documentation | The LTT documentation. |
The 50_LTT_SW folder content is like below:
